Parameter | DS-2TP31B-3AUF | |
| Handheld Thermography Camera | ||
|
Thermal Module | Image sensor | Uncooled Focal Plane Arrays |
| Max. Resolution | 160 ×120 | |
| Pixel Pitch | 17μm | |
| Response waveband | 8μm to 14μm | |
| NETD | < 40mK (@ 25 °C,F#=1.0) | |
| Field of View | 37.2°×50 ° | |
| Focal length | 3.1 mm | |
| IFOV (mrad) | 5.48 mrad | |
| Min. Focus Length | ≥ 150 mm | |
| Aperture | F 1.1 | |
| Image Display | Monitor | 320 ×240 resolution 2.4’’ LCD display |
| Palettes | Black hot, White hot, Rainbow, Ironbow | |
|
Thermography | Rules | 3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature |
| Thermographic Range | 30°C to 45 °C | |
| Thermographic Accuracy | ±0.5 °C | |
| Battery | Battery Type | Rechargeable Lithium Battery |
| Battery Operating Time | 8 hours continuous running | |
|
Functions | Laser Light | Support (Point to the thermography target) |
| Storage | Replaceable memory card (default 8G, support up to 128G storage) | |
| Photo | Thermal image | |
| Video | N.A. | |
| Language | English | |
|
General | Power | 3.7 V DC/0.4 A |
| Power Consumption | Less than 1.2 W | |
| Hardware Interface | micro USB | |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) | |
| Protection level | IP54 | |
| Drop Test Height | 2 m (6.56 feet) | |
| Dimension | 196 mm ×117 mm ×59 mm (7.7 ″ × 4.6 ″ × 2.3 ″) | |
| Weight | Approx. less than 350 g (0.77 lb) | |
| Accessory | Power Adaptor, USB cable, 8GB memory card, User manual, Disk, Wrist Strap | |

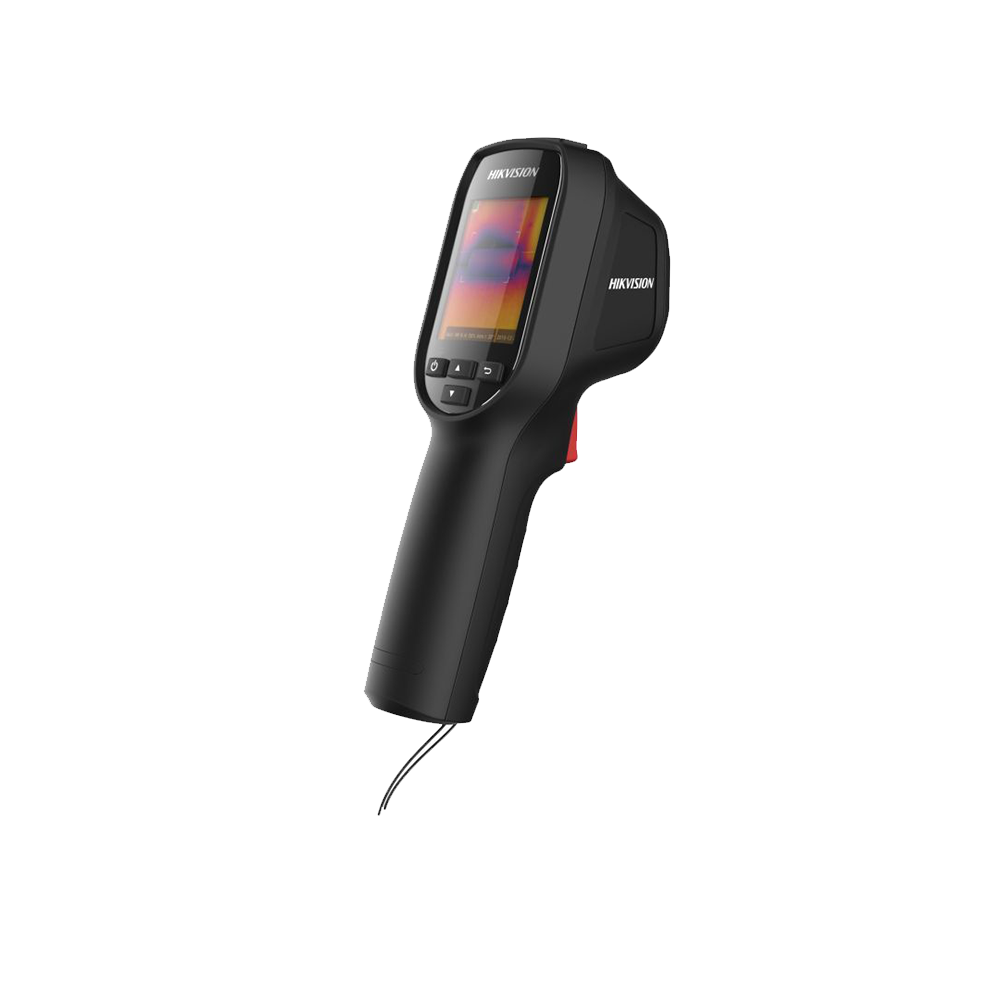

DS-2TP31B-3AUF
0₫
DS-2TP31B-3AUF
Body Temperature Measurement camera
160 × 120 resolution
Thermographic accuracy up to ±0.5 °C
320 × 240 resolution 2.4’’ LCD display
Built-in rechargeable Li-ion battery
Up to 8 hours continuous runningThermography : Device detects the real-time temperature, and display it on the screen.
Storage : Device is equipped with replaceable memory card to store recorded captured snapshots, and important data.
Palette : Device supports 4 palettes
Thermographic accuracy up to ±0.5 °C
320 × 240 resolution 2.4’’ LCD display
Built-in rechargeable Li-ion battery
Up to 8 hours continuous runningThermography : Device detects the real-time temperature, and display it on the screen.
Storage : Device is equipped with replaceable memory card to store recorded captured snapshots, and important data.
Palette : Device supports 4 palettes
